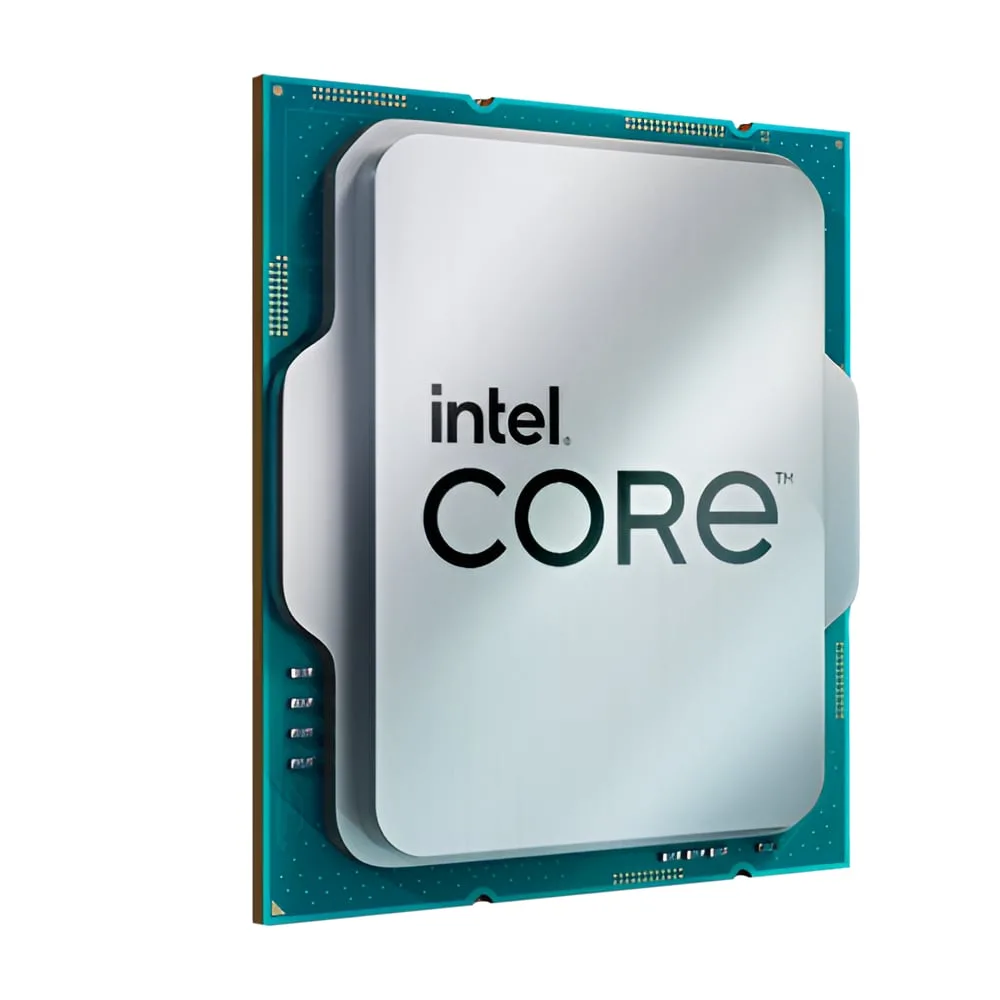

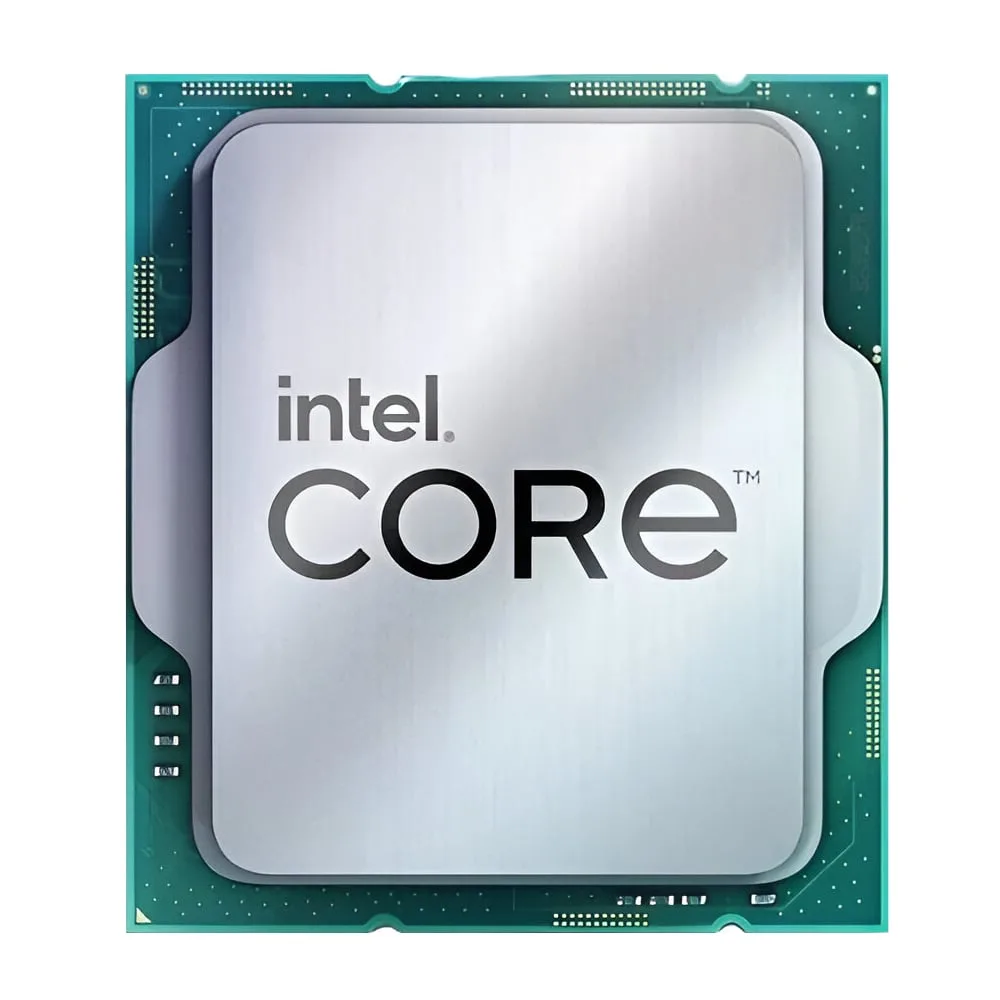

Intel Core i7-14700 LGA1700 2.1GHz 20-Core Processor

Experience next-level desktop performance with the Intel Core i7-14700 LGA1700 2.1GHz 20-Core Processor – engineered to accelerate gaming, content creation, and demanding multitasking workloads. Built on Intel’s innovative 14th Gen hybrid architecture, this high-performance CPU features a significant increase in core count, intelligently combining Performance-cores (P-cores) and Efficient-cores (E-cores) to deliver optimal responsiveness across diverse applications.

Designed for power users, creators, and competitive gamers, the Intel Core i7-14700 supports up to 16 PCIe 5.0 lanes and lightning-fast DDR5 memory at speeds of up to 5600 MT/s, ensuring future-proof bandwidth for next-gen GPUs and storage. Intel Turbo Boost Max Technology 3.0 enhances lightly threaded workloads by prioritising the most efficient cores, while expanded L2 and L3 Smart Cache enables faster access to larger datasets and seamless multitasking across applications.

The processor also supports up to four 4K@60Hz displays or a single 8K@60Hz HDR output, delivering stunning visual clarity for immersive gaming and productivity. With comprehensive support for Intel 700 series chipsets and backward compatibility with 600 series motherboards, including B760, Z790, and H610 motherboards. This broad compatibility empowers builders to select the ideal platform for any application or budget.

Whether you are pushing creative boundaries, conquering the latest AAA titles, or managing intensive workflows, the Intel Core i7-14700 is the performance powerhouse for the modern desktop environment.

FEATURES:

• 20 Cores and 28 Threads: Optimised for multitasking and high-performance computing
• Max Turbo Frequency of 5.4 GHz: Delivers swift and responsive processing speeds
• Intel UHD Graphics 770: Supports high-resolution displays up to 7680 x 4320 at 60Hz
• Supports DDR5 and DDR4 Memory: Compatible with up to DDR5 5600 MT/s and DDR4 3200 MT/s memory types
• PCIe 5.0 and 4.0 Support: Offers up to 20 PCI Express lanes for high-speed data transfer
• Intel Turbo Boost Max Technology 3.0: Enhances performance by identifying and boosting the fastest cores
• Efficient Thermal Design: Operates with a Processor Base Power of 65 W and Maximum Turbo Power of 219 W

SPECIFICATIONS:

• Essentials:
• Product Collection: Intel Core i7 Processors (14th gen)
• Code Name: Products formerly Raptor Lake
• Vertical Segment: Desktop
• Processor Number: i7-14700
• Lithography: Intel 7
• CPU Specifications:
• Total Cores: 20
• # of Performance-cores: 8
• # of Efficient-cores: 12
• Total Threads: 28
• Max Turbo Frequency: 5.4GHz
• Intel Turbo Boost Max Technology 3.0 Frequency: 5.4GHz
• Performance-core Max Turbo Frequency: 5.3GHz
• Efficient-core Max Turbo Frequency: 4.2GHz
• Performance-core Base Frequency: 2.1GHz
• Efficient-core Base Frequency: 1.5GHz
• Cache: 33 MB Intel Smart Cache
• Total L2 Cache: 28 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 219 W
• Memory Specifications:
• Max Memory Size (dependent on memory type): 192 GB
• Memory Types:
  • Up to DDR5 5600 MT/s
  • Up to DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s
• ECC Memory Supported: Yes
• GPU Specifications:
• GPU Name: Intel UHD Graphics 770
• Graphics Base Frequency: 300MHz
• Graphics Max Dynamic Frequency: 1.6 GHz
• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units: 32
• Max Resolution (HDMI): 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @ 120Hz
• DirectX* Support: 12
• OpenGL* Support: 4.5
• OpenCL* Support: 3.0
• Multi-Format Codec Engines: 2
• Intel Quick Sync Video: Yes
• Intel Clear Video HD Technology: Yes
• # of Displays Supported: 4
• Device ID: 0xA780
• Expansion Options:
• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1×16+4, 2×8+4
• Max # of PCI Express Lanes: 20
• Package Specifications:
• Sockets Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020C
• TJUNCTION: 100°C
• Package Size: 45.0 mm x 37.5 mm
• Max Operating Temperature: 100 °C
• Advanced Features:
• Intel Volume Management Device (VMD): Yes
• Intel Gaussian & Neural Accelerator: 3.0
• Intel Thread Director: Yes
• Intel Deep Learning Boost (Intel DL Boost): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Max Technology 3.0: Yes
• Intel Turbo Boost Technology: 2.0
• Intel Hyper-Threading Technology: Yes
• Intel 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep Technology: Yes
• Thermal Monitoring Technologies: Yes
• Security & Reliability
• Intel vPro Eligibility: Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
• Intel Hardware Shield Eligibility: Yes
• Intel Threat Detection Technology (TDT): Yes
• Intel Active Management Technology (AMT): Yes
• Intel Standard Manageability (ISM): Yes
• Intel Remote Platform Erase (RPE): Yes
• Intel One-Click Recovery: Yes
• Intel Control-Flow Enforcement Technology: Yes
• Intel Total Memory Encryption - Multi Key: Yes
• Intel AES New Instructions: Yes
• Secure Key: Yes
• Intel OS Guard: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel Stable IT Platform Program (SIPP): Yes
• Intel Virtualization Technology with Redirect Protection (VT-rp): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes

WHAT’S IN THE BOX:

• Intel Core i7-14700 LGA1700 2.1GHz 20-Core Processor x1
