Hikvision 8 Channel DVR 2MP Camera 100M Cat6

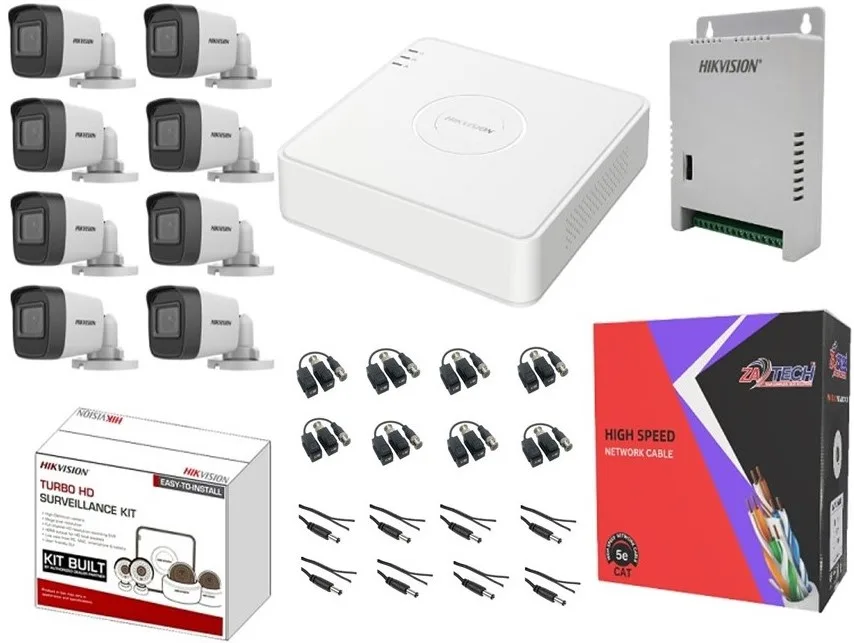

Hikvision 8 Channel DVR 2MP Camera 100M Cat6 Cable CCTV Kit - 8 × 2MP fixed mini bullet cameras with 1080p resolution, up to 20m IR night vision, IP67 weatherproof rating. The 8 channel DVR supports H.265 Pro+ compression,and up to 5 IP camera inputs (up to 2MP). Also included are 8 × baluns (Pairs), 8 × DC power connectors, and 1 × Securnix 8CH power supply-providing everything needed for a professional analog CCTV installation using Cat6 cable.

Product Overview

The Hikvision 8CH analog CCTV kit includes eight 2MP fixed mini bullet cameras with 1080p resolution, 20m IR night vision, and IP67 weatherproof rating, ideal for reliable outdoor surveillance. It uses Securnix 100m Cat6 cable with baluns to transmit video and power through a single cable, supporting neat long-distance installations. The 8-channel DVR features H.265 Pro+ compression, supports up to 5 IP cameras, and comes with all necessary accessories for a professional analog CCTV setup.

Specifications

•Product Code: HIK-2802-100M
•Description: Hikvision 8CH Analog CCTV Kit
•Image Sensor2 MP CMOS
•Signal SystemPAL/NTSC
•Max. Resolution1920 (H) × 1080 (V)
•Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
•Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
•Day & NightIR Cut Filter
•Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
Lens
•Lens Type2.8 mm, 3.6 mm Fixed Lens
•Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
•Lens MountM12
Illuminator
•Supplement Light RangeUp to 20 m
•Supplement Light TypeSmart,IR,White Light
•Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
•Wide Dynamic Range (WDR)Digital WDR
•Image Parameters SwitchSTD/HIGH-SAT
•Day/Night ModeAuto/Color
•White BalanceAuto
•Image EnhancementDWDR, BLC, Global
•Noise Reduction2D DNR
•Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
•Interface - Video OutputSwitchable TVI/AHD/CVI/CVBS
DVR

•Motion Detection 2.0
•Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
Video and Audio
•IP Video Input2-ch (up to 10-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
•Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
•HDTVI Input1080p25, 1080p30, 720p25, 720p30
•AHD Input1080p25, 1080p30, 720p25, 720p30
•HDCVI Input1080p25, 1080p30, 720p25, 720p30
•CVBS InputSupport
•HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•Video Output ModeHDMI/VGA simultaneous output
•Audio Input1-ch RCA (2.0 Vp-p, 1 K )8-ch via coaxial cable
•Audio Output1-ch, RCA (Linear, 1 K )
•Two-Way AudioReuse the first audio input
•Synchronous playback8-ch
Network
•Total Bandwidth72 Mbps
•Remote Connection64
•Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP , HTTPS
•Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
•SATA1 SATA interface
•CapacityUp to 4 TB capacity for each disk
•USB InterfaceRear panel: 2 × USB 2.0
•Alarm In/OutN/A
